The reason it is called T‑GRIP Geomembrane is that it has T‑shaped notches that run continuously along the entire length of the membrane. Thanks to these notches, our product locks very well onto the concrete it is applied to and does not detach. It incorporates the general characteristics of HDPE and PVC geomembranes. In particular, its resistance to chemicals and its aging life have been enhanced. **Applications and Use Areas** Additional areas can be joined with minimal labor using a welding machine. With single‑ or double‑row welding machines produced with the latest technology, it is possible to create a safe and controllable insulation. - Building foundation and curtain wall insulation - Terrace and garden terrace roofs - Drinking water reservoirs - Water reservoirs - Lightweight metal roofs - Irrigation channels - Ponds - Metro stations - Railway, metro and highway tunnel projects

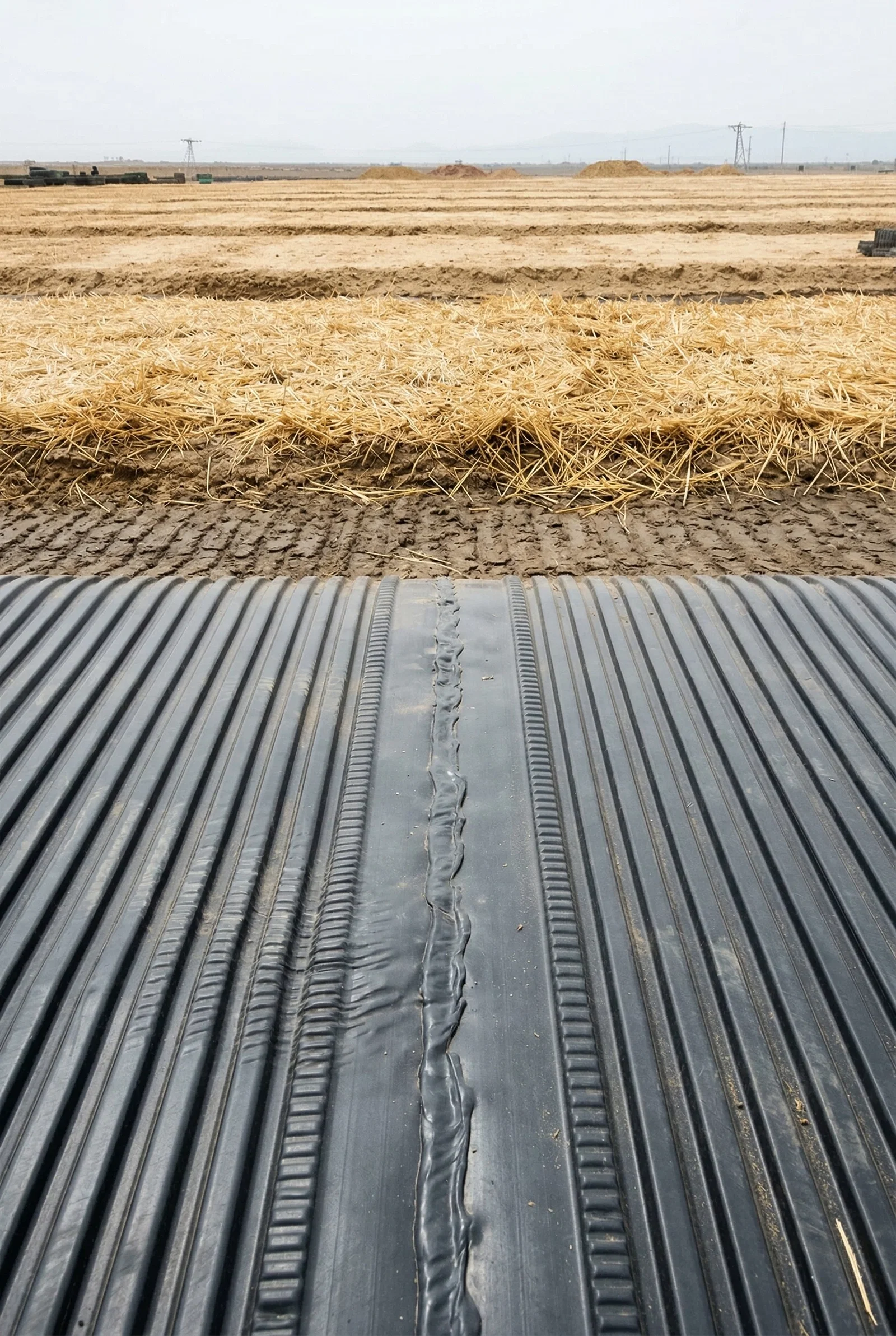

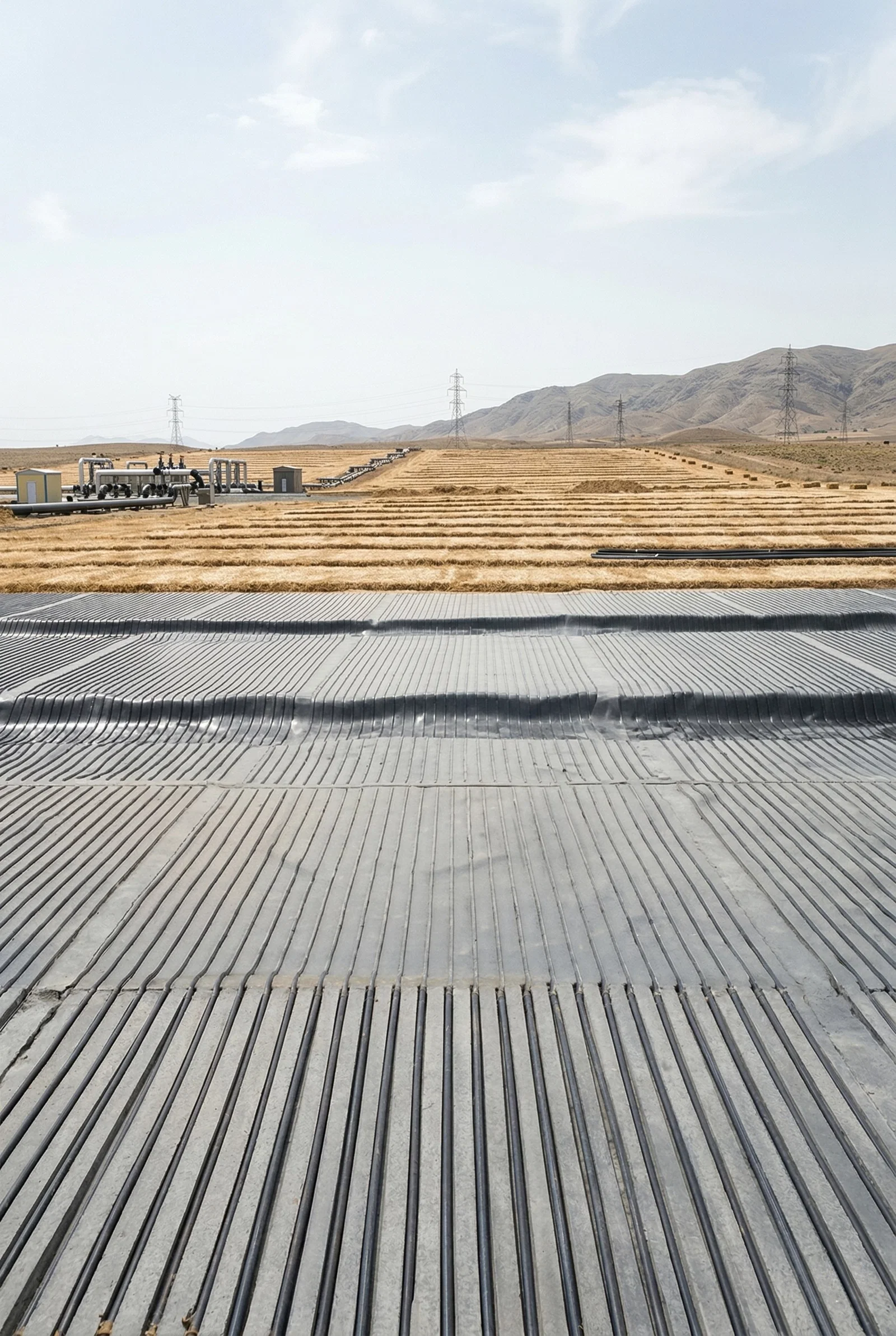

First image

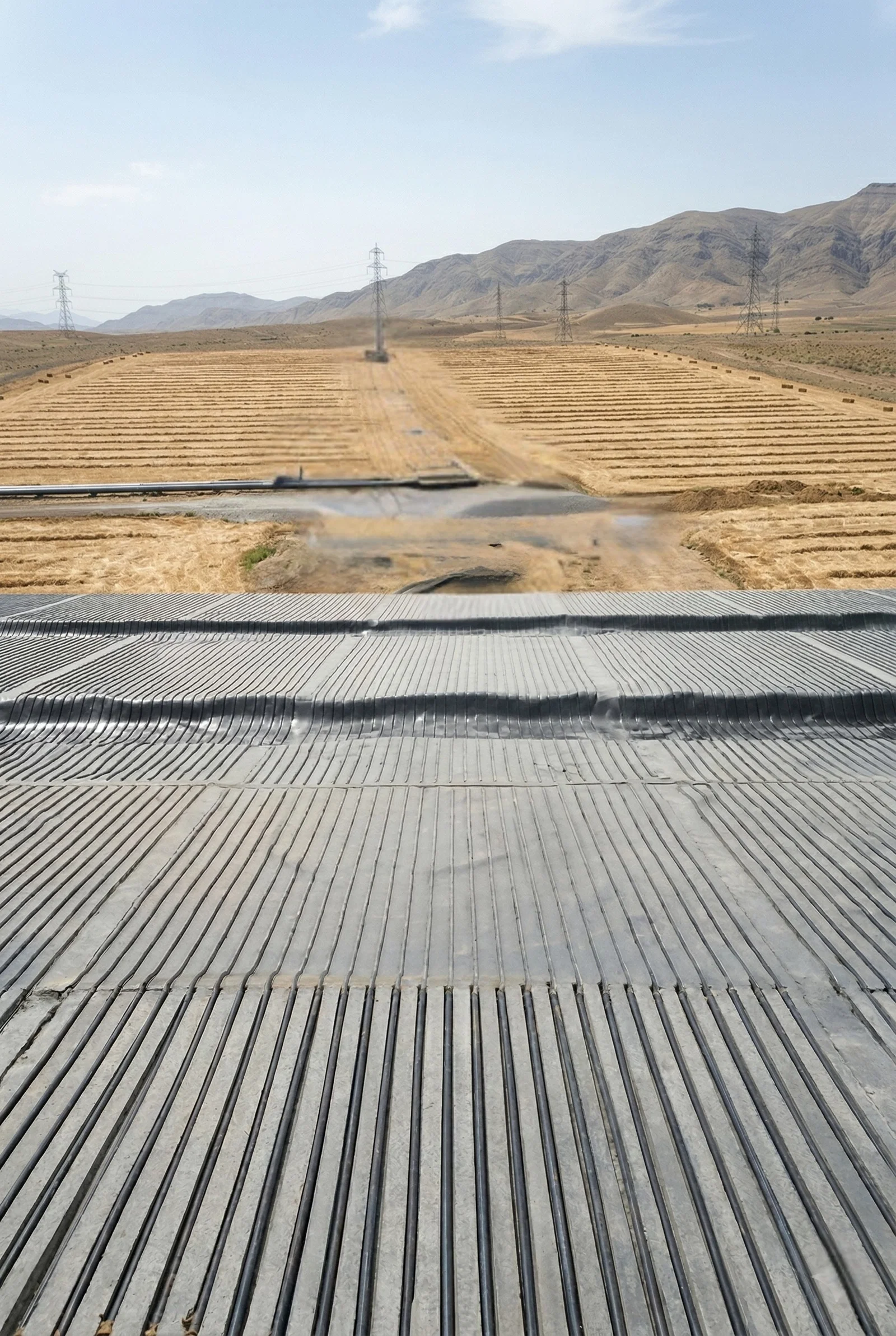

Second image


Advantages
It has a long lifespan.
It has high resistance to chemical and mechanical effects.
It is resistant to plant roots.
It also has high resistance to outdoor conditions with UV-resistant and carrier types.
Signal-layered products can be visually inspected.
It can be applied safely, easily, and quickly with special welding machines.
The joint's leak-tightness can be checked with double-row additional weld.
Packaging and Storage
Materials are shipped in rolls 1.6–2.1 m wide and 20–25 m long.
Materials should be stored on flat ground and in a closed area. Stored products should be kept away from direct sunlight, heat, and ignition sources. If PVC-covered rolls need to be stored outdoors for a long time, they should be covered to protect them from sunlight. Smoking is not allowed in the storage area.

Technical Specifications

Thickness

ASTM D 5199

mm

0.75 – 3.00

Density

ASTM D 1505

g/cm³

≥ 0.94

Yield strength

ASTM D 6693 type IV

kN/m

12-45

Yield elongation

ASTM D 6693 type IV

%

≥ 12

Tear strength

ASTM D 6693 type IV

kN/m

24-80

Tear elongation

ASTM D 6693 type IV

%

≥ 750

Tear resistance

ASTM D 1004

N

95-380

Puncture resistance

ASTM D 1603

N

280-1000

Oxidation induction time (OIT)

ASTM D 3895

min.

≥100
