MZ Ticaret: The Invisible Shield of Buildings – Engineering Approach and Implementation Discipline in Foundation Curtain Insulation
At MZ Ticaret, we do not limit our expertise in the construction sector to modular structures alone; we also bring high engineering standards to the field in foundation curtain insulation, one of the most critical stages that determines the lifespan of permanent buildings. Foundations and curtain walls that keep a building standing constantly battle moisture, groundwater, sulfates, and fluctuating pressure conditions beneath the ground. Improperly applied foundation insulation can, over time, cause water infiltrating into the concrete to corrode reinforcement, cause the concrete to lose its load‑bearing capacity, and rapidly deplete the building’s static lifespan. MZ Ticaret treats foundation curtain insulation not just as an insulation layer but as a holistic defense system that protects the building’s genetic health. Every stage, from the chemical compatibility of the materials we use to the preparation of the application surface, is planned according to international insulation standards.
Static Importance and Technical Analysis of Surface Preparation in Foundation Curtain Insulation
The foundation of a successful insulation application lies not in the quality of the insulation material itself, but in the condition of the surface on which the material will be applied. Before proceeding with the insulation process on foundation curtain walls, MZ Ticaret teams meticulously clean the tij holes (drilling holes), mold‑separator oil residues, and the segregation zones that form after concrete pouring. Sharp points and splinters on the concrete surface are shaved off with mechanical methods to prevent the insulation membrane from being punctured or the liquid application from tearing. In particular, the cold joints and corners where the vertical curtain meets the horizontal foundation are weak rings with the highest risk of water infiltration. In these areas, a “pah” process is performed using high‑strength repair mortar and pah strips. Converting sharp corners into a circular shape ensures that the insulation material fully adheres to the surface at these points without breaking or stretching. This technical preparation stage is the first and most important step that guarantees the longevity of the service offered by MZ Ticaret.
Creating an uninterrupted water barrier with bituminous liquid and membrane systems

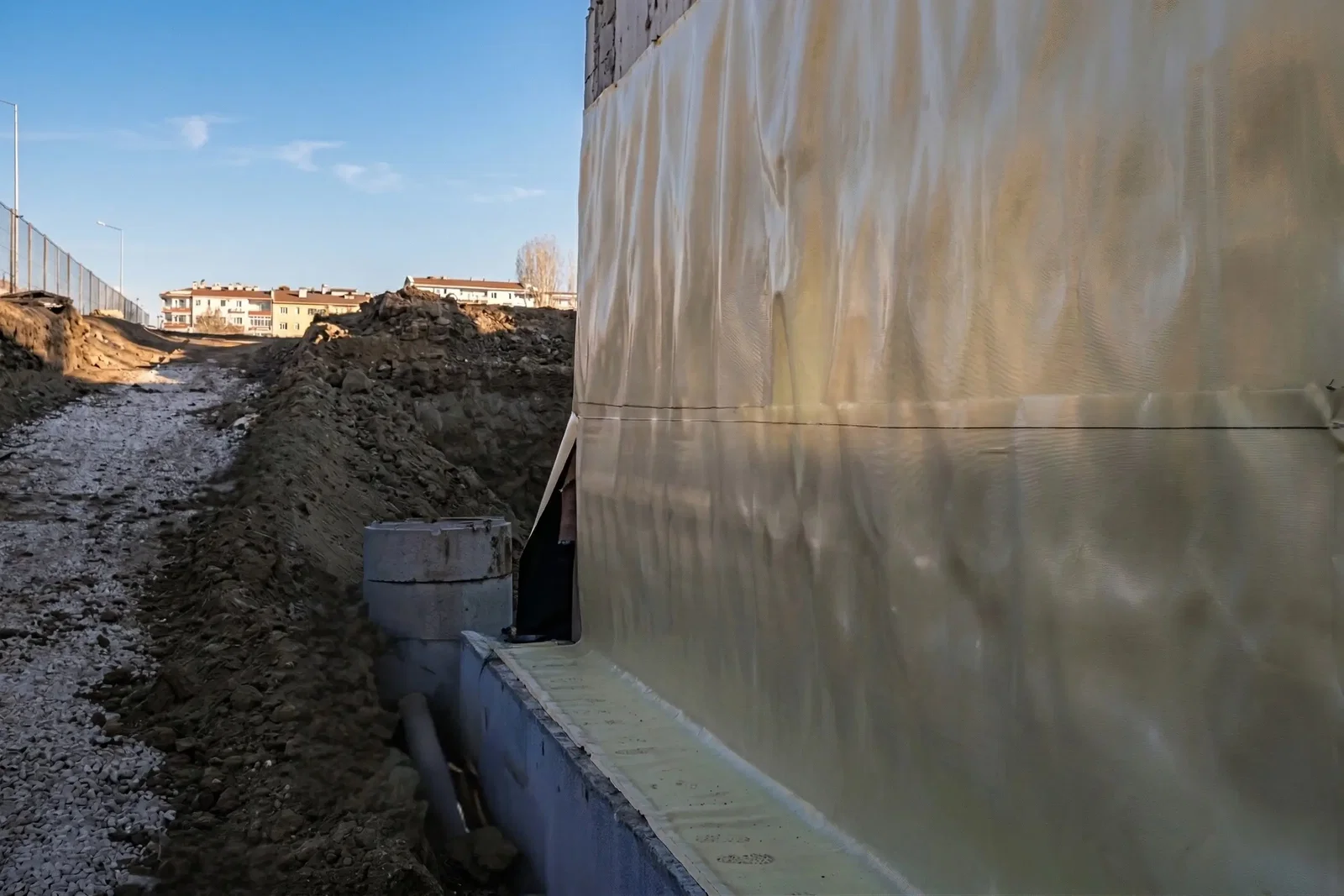

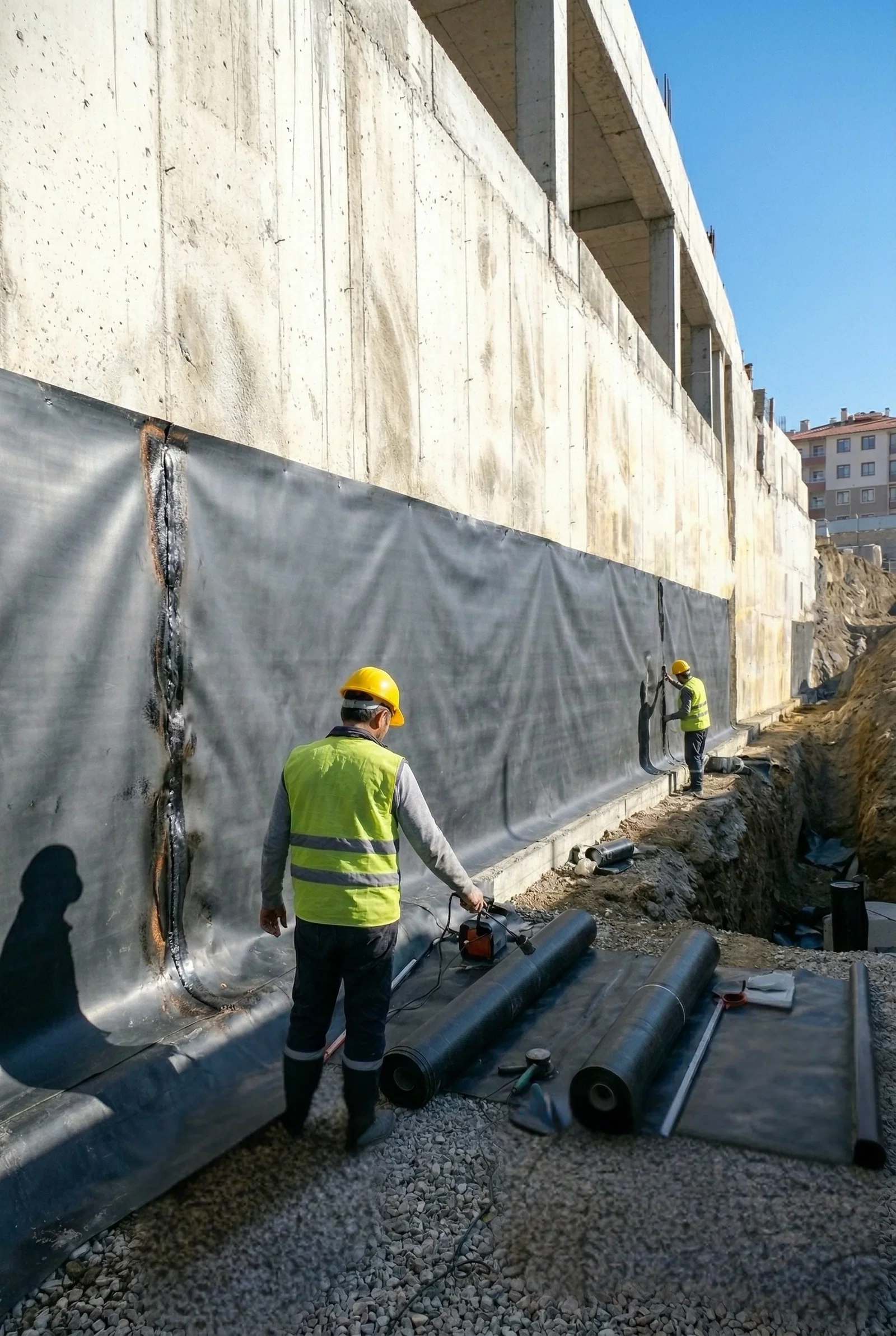

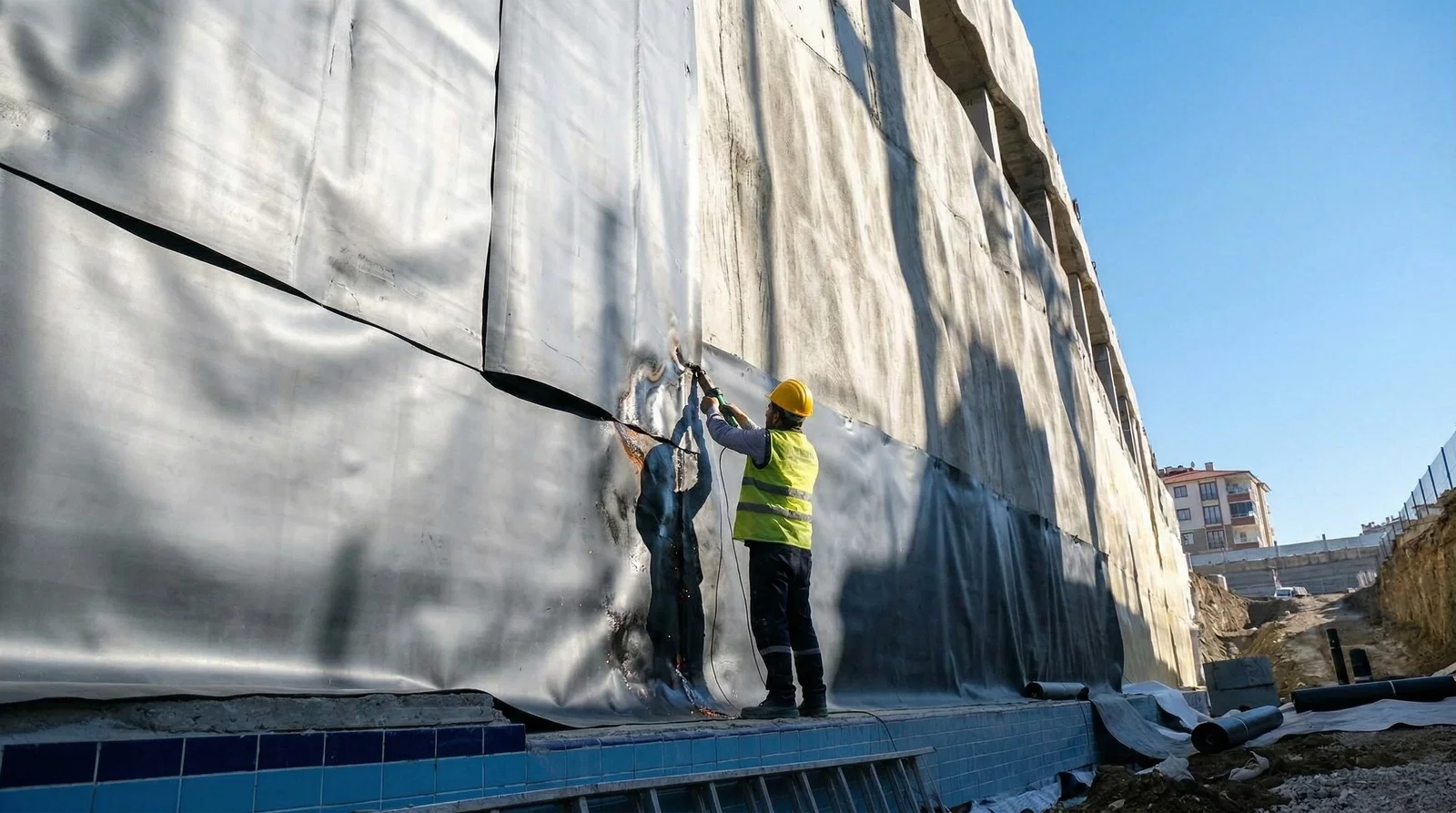

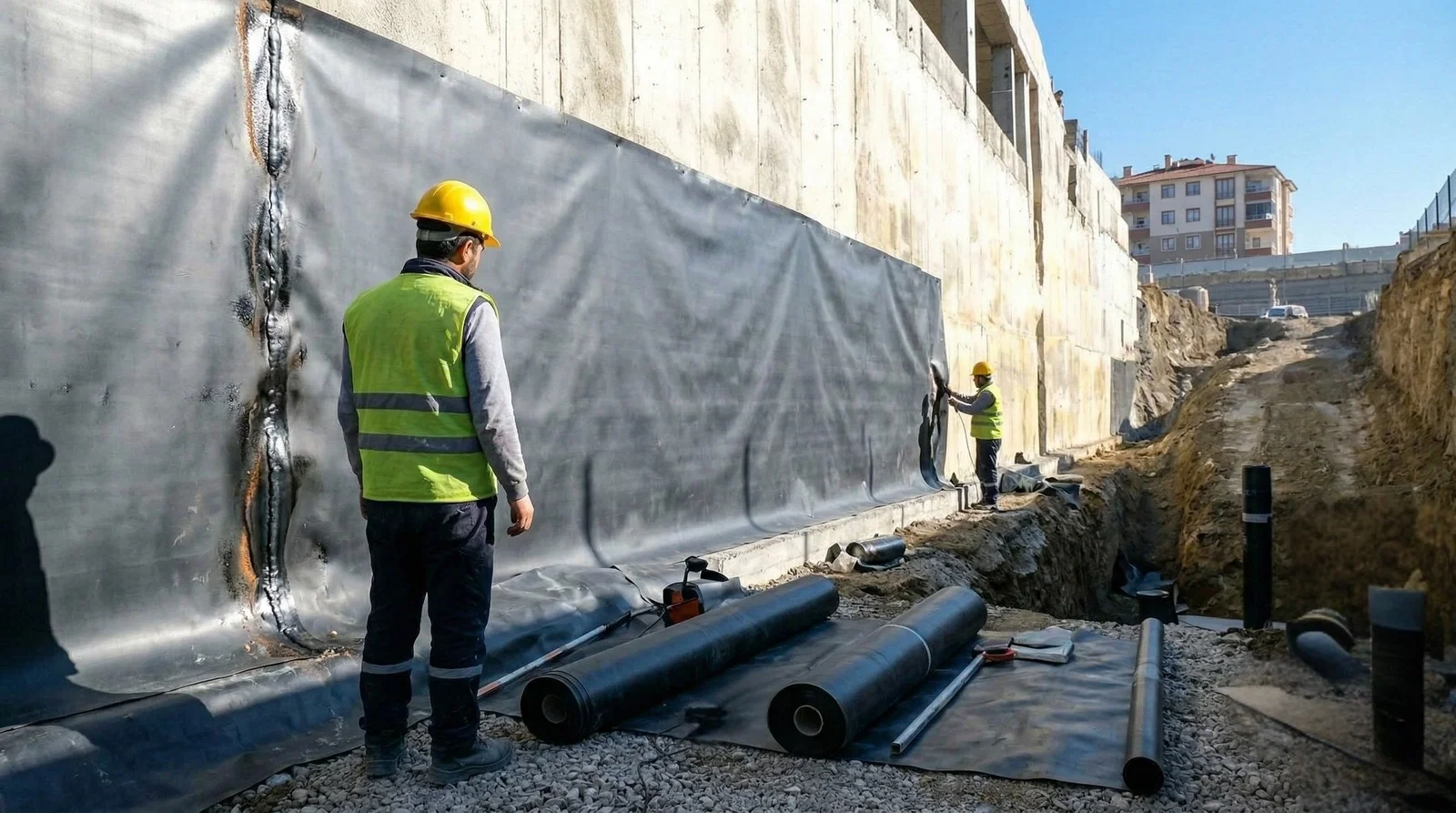

MZ Ticaret prefers double‑stage protection systems by combining traditional methods in basic curtain insulation with modern technology. The bitumen‑based liquid sliding insulation materials used in the first layer penetrate the pores of the concrete, maximizing adhesion (bond strength). This liquid layer allows the concrete to breathe while completely stopping the passage of liquid water. Then, polymer‑modified bituminous membranes or sliding‑based elastomeric resins with high elasticity are applied, selected according to the project and ground‑water pressure. In membrane applications, the seamless joining of the additional areas (bonding portions) with a purmüz flame or hot air is a fundamental indicator of our professional workmanship. As MZ Ticaret, we act with the awareness that even a tiny needle‑sized void that could break the continuity of the insulation layer could collapse the entire system, and we apply zero‑error tolerance per square meter.
Crystallized Water Insulation and Concrete’s Self‑Repair Mechanism
On challenging terrains with high underground water pressure or limited drainage, MZ Ticaret deploys crystallized water insulation technologies. The chemicals used in this system react with free lime and water molecules inside the concrete, forming water‑insoluble crystalline fibers within the concrete pores. These fibers fill the concrete’s capillary voids, stopping the progression of water. The greatest advantage of crystallized insulation is that it remains active throughout the structure’s lifespan; when potential capillary cracks in the concrete later come into contact with water, the crystallization process is re‑triggered, allowing the concrete to self‑repair and maintain its impermeability. MZ Ticaret applies this technology to both the exterior and interior surfaces of foundation walls, blocking water penetration into the concrete with a structural barrier. This method ensures that we become an indispensable solution partner, especially in deep‑foundation structures and underground engineering projects such as metro lines.
Ensuring Insulation with Drainage Systems and Protective Layers

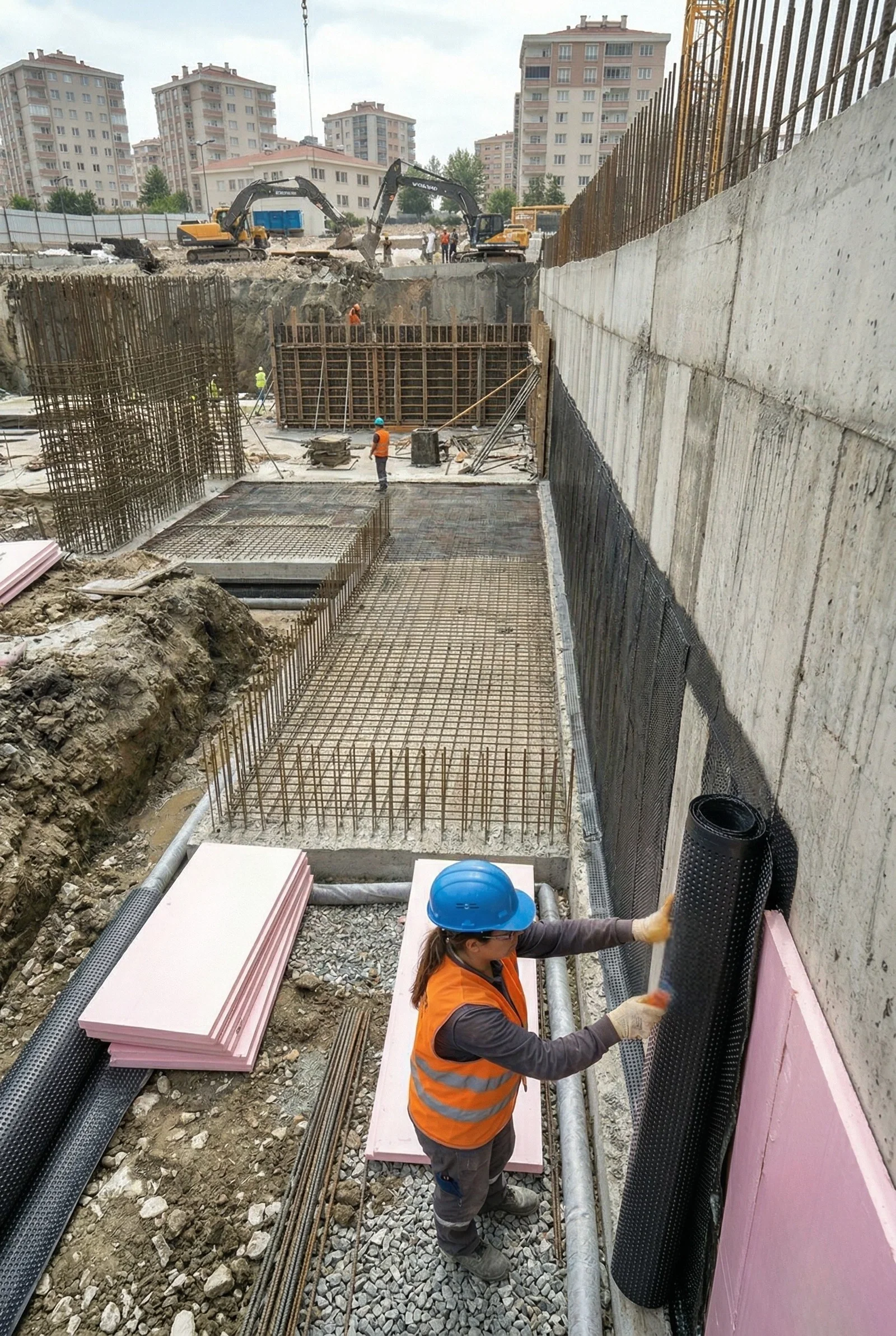

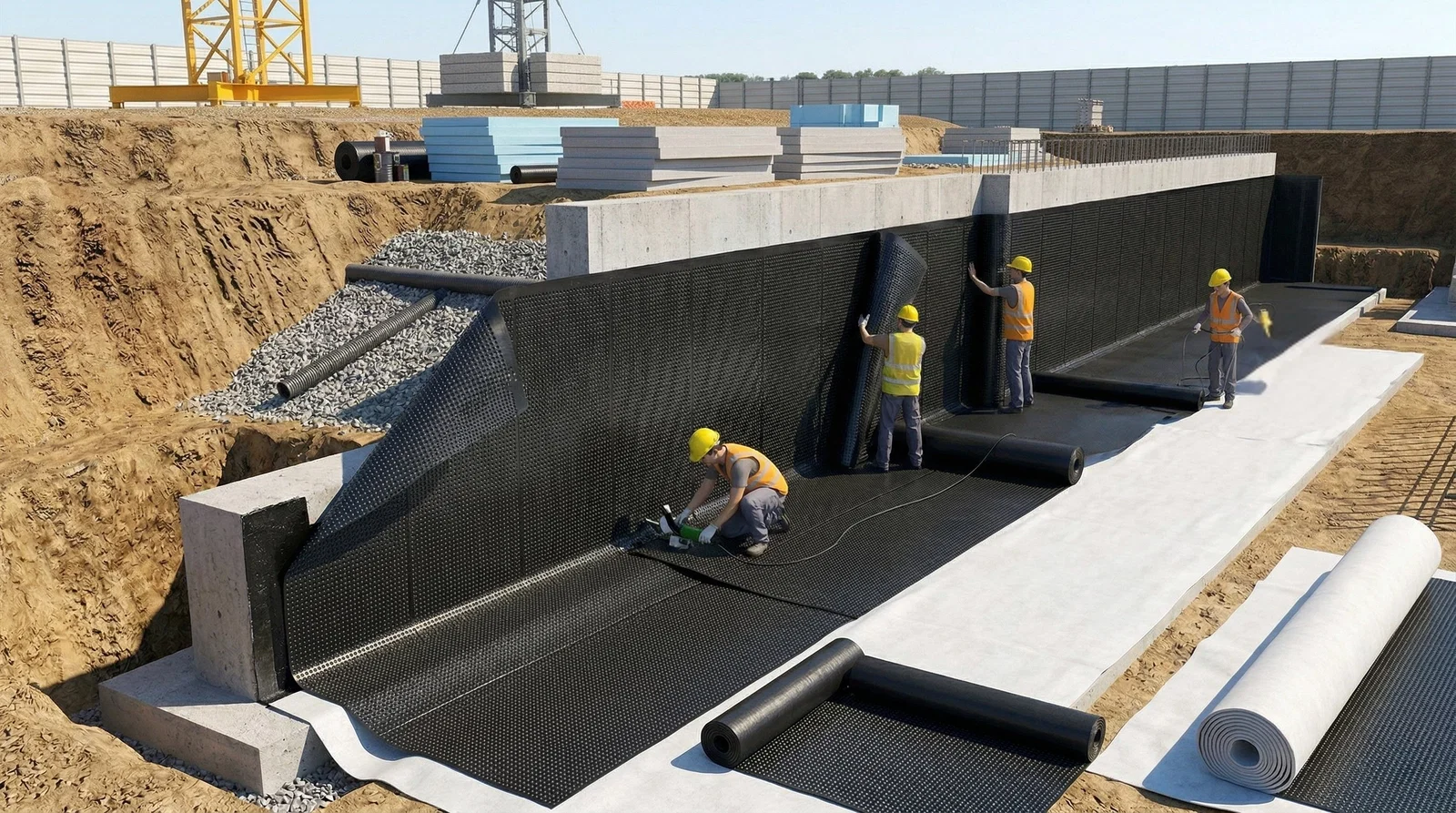

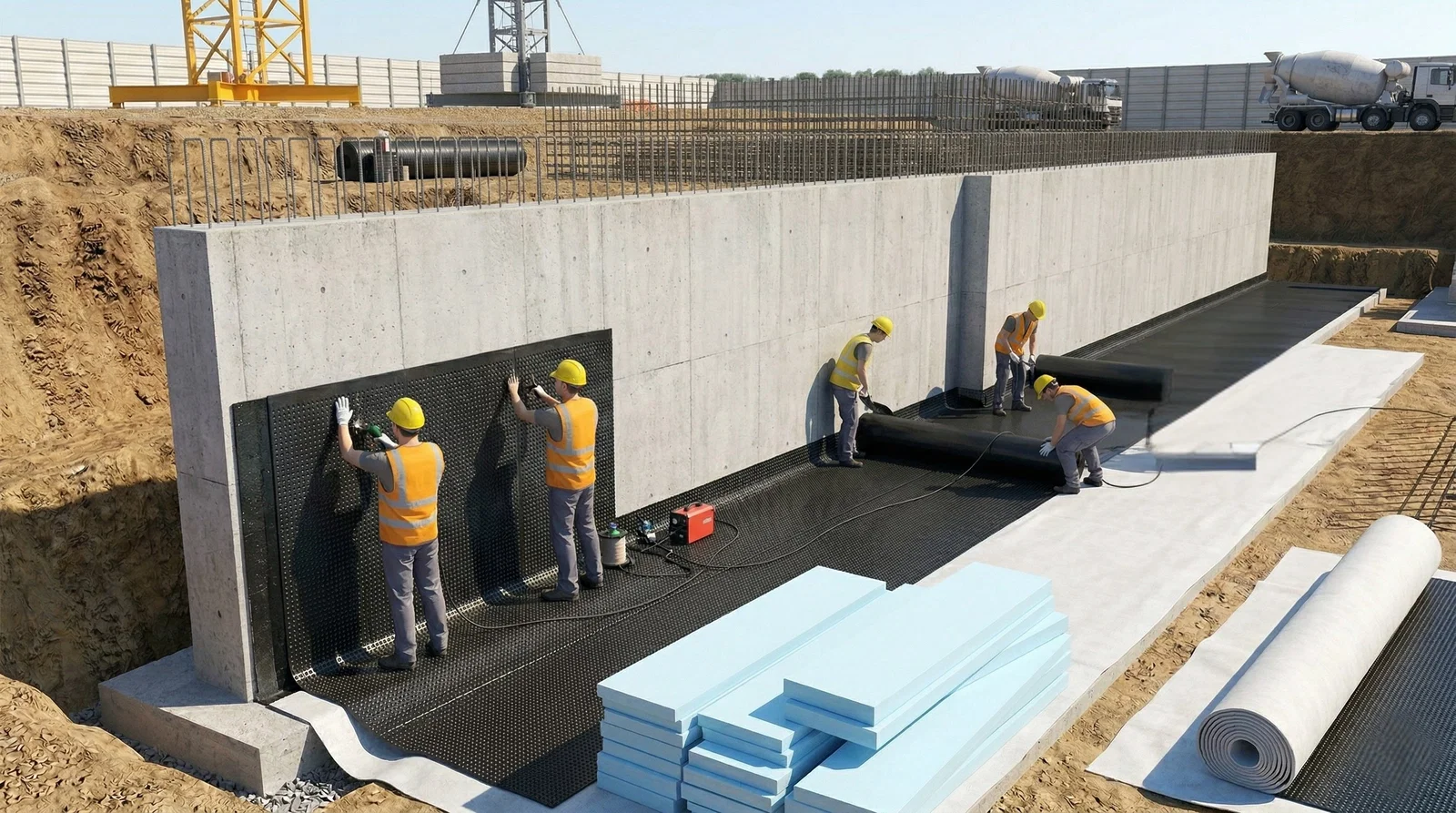

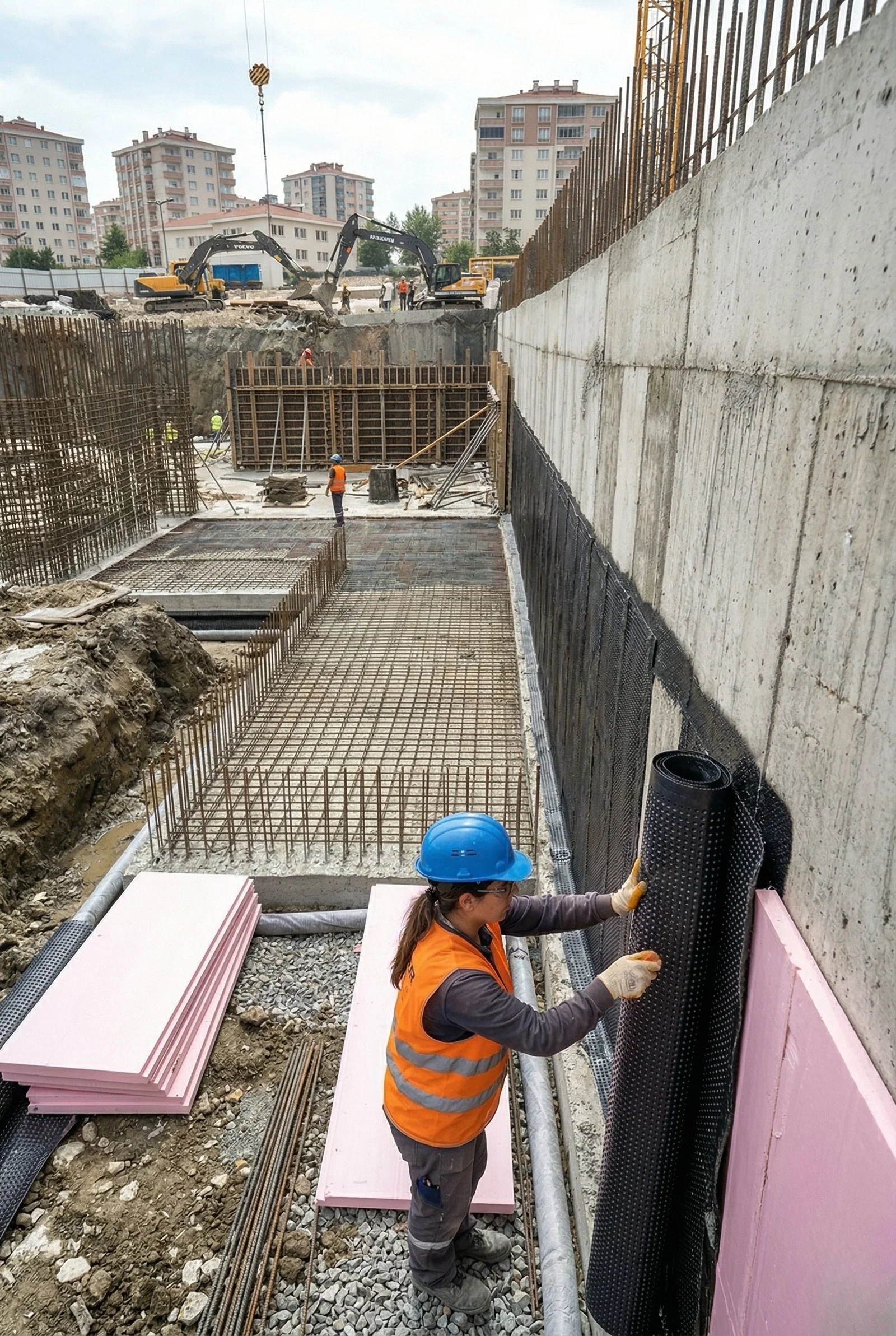

To prevent the precise insulation layer applied from being damaged by the rock, stone, and rubble pieces that will be used during backfilling, MZ Ticaret always applies a protective layer. At this stage, high‑density polyethylene (HDPE)‑based drainage plates (bubble membranes) are used. These plates not only protect the insulation layer from mechanical impacts, but also redirect the direction of groundwater downward, i.e., toward the drainage pipes, thereby reducing the hydrostatic pressure on the curtain wall. Perforated (Drainflex) pipes installed at the footing level and geotextile fleece filter systems wrapped around these pipes remove accumulated water from the structure and convey it to sewer or discharge lines. At MZ Ticaret, we view insulation not just as a coating material, but as a water‑drainage engineering solution. Preventing uncontrolled accumulation of groundwater directly doubles the lifespan of the insulation.
Thermal Integrity in Thermal Insulation and Foundation Curtain Isolation

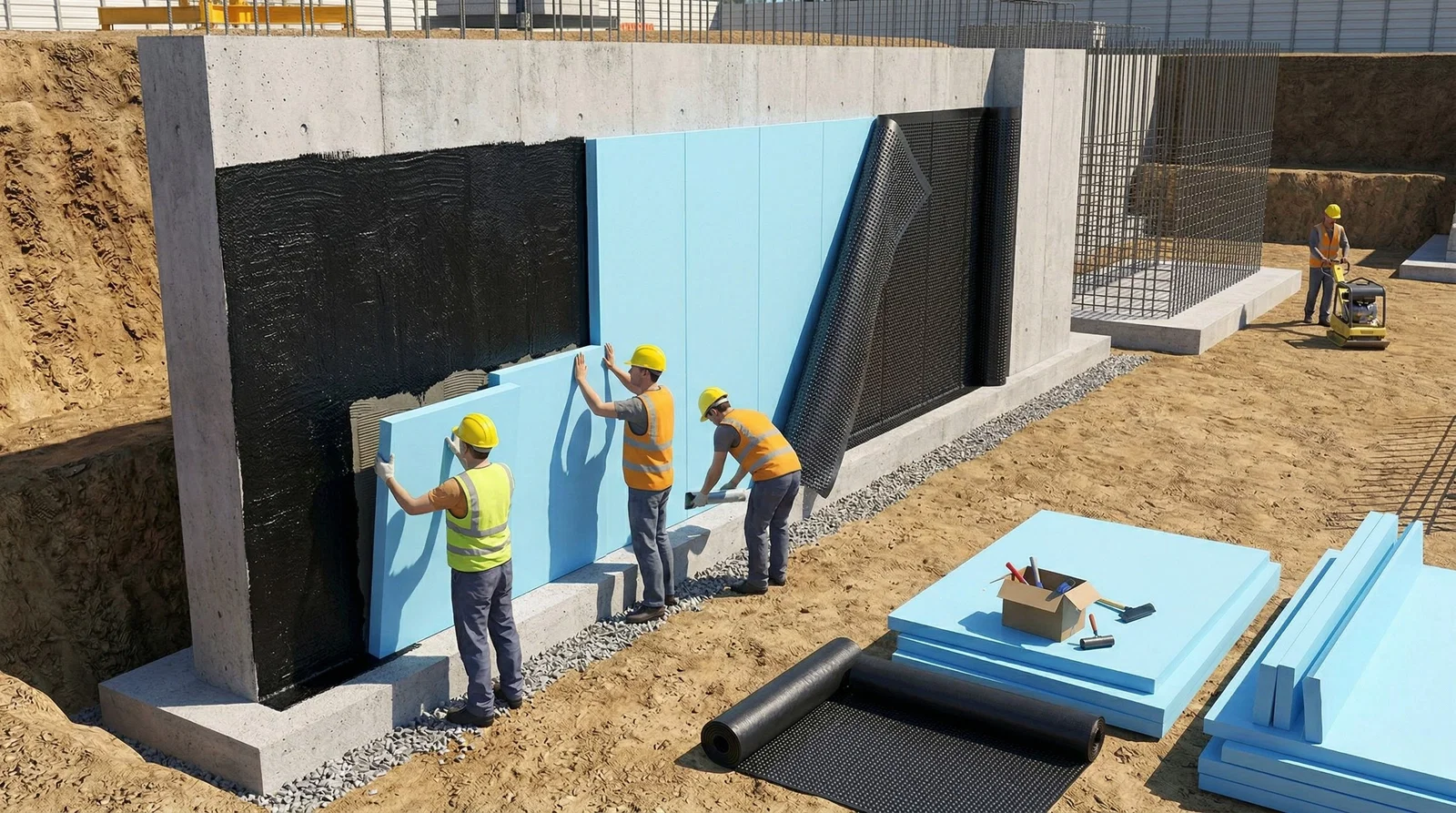

Foundation curtain insulation is not only about fighting water but also about protecting the building’s thermal performance. MZ Ticaret eliminates the thermal bridges in the foundation by installing XPS (extruded polystyrene) thermal insulation panels over the waterproofing layer. This application prevents sweating and mold formation inside the building in projects where basement floors are used as living spaces or storage. Balancing the difference between ground temperature and indoor temperature increases comfort and prevents structural elements from experiencing thermal shocks, thereby avoiding expansion cracks. The high‑compression‑resistant insulation panels we use retain their shape under soil load and provide an additional protective shield for the waterproofing membrane. MZ Ticaret’s integrated insulation solutions create an uninterrupted energy‑efficiency chain from the building’s base to the top floor.
Professional Inspection and Post‑Installation Warranty with the MZ Ticaret Difference
What sets us apart from other contractors in the industry is our detailed testing and inspection process after installation. MZ Ticaret experts perform visual and technical checks before proceeding with backfilling once the foundation curtain insulation is complete. Thickness measurements and adhesion tests are carried out at critical points to verify the uniformity of the insulation. Waterproofing is the most difficult and costly construction item to repair; if a leak is detected after the building is finished and the soil is backfilled, the entire surrounding excavation must be redone. Aware of this risk, we operate on the principle of “right application the first time.” The foundation curtains insulated by MZ Ticaret are delivered to your company with customized warranty documents. With decades of experience and the high‑end materials we use, we seal the foundations of your buildings against the destructive effects of water forever.
Sustainable Buildings and Chemically Resistant Insulation Solutions
Today, urbanization and the mixing of industrial waste with groundwater have increased the chemical aggressiveness beneath the soil. MZ Ticaret focuses not only on water tightness in foundation curtain insulation but also on special resins resistant to chlorine, sulfate, and acidic groundwater. In industrial areas or projects close to sea level, protecting the steel reinforcement in concrete from chlorine‑ion attacks is vital. Our polyurethane‑based and hybrid insulation systems create a complete barrier against these chemical effects, stopping concrete carbonation. Advocating that solid foundations must be laid for a sustainable future, MZ Ticaret analyzes soil reports for each project and offers the insulation solution with the most suitable chemical composition for that ground. Trust MZ Ticaret’s engineering discipline to extend the lifespan of your buildings for generations.
