Geotextile Drainage Plate: The Protective Shield of Modern Infrastructures

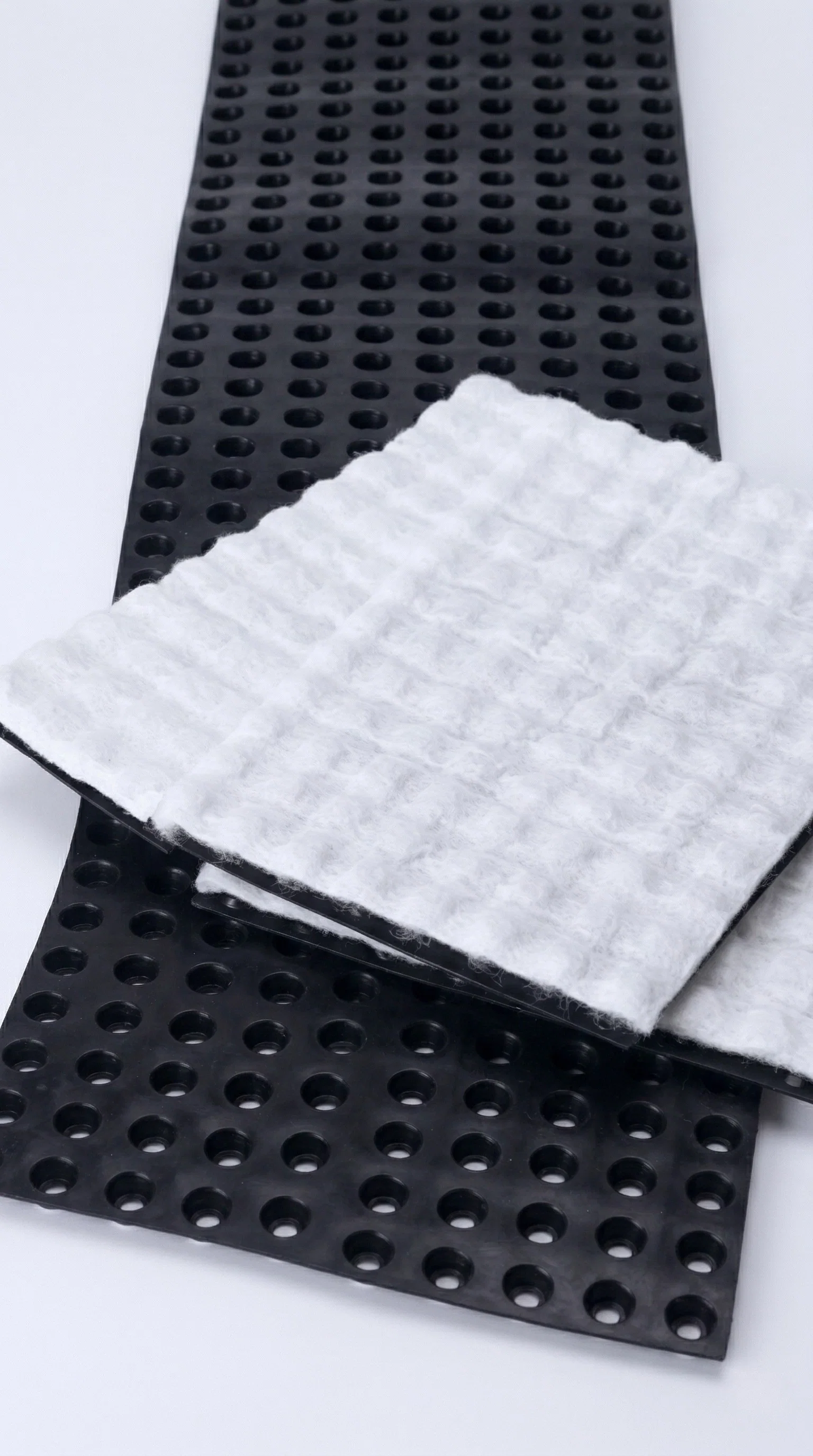

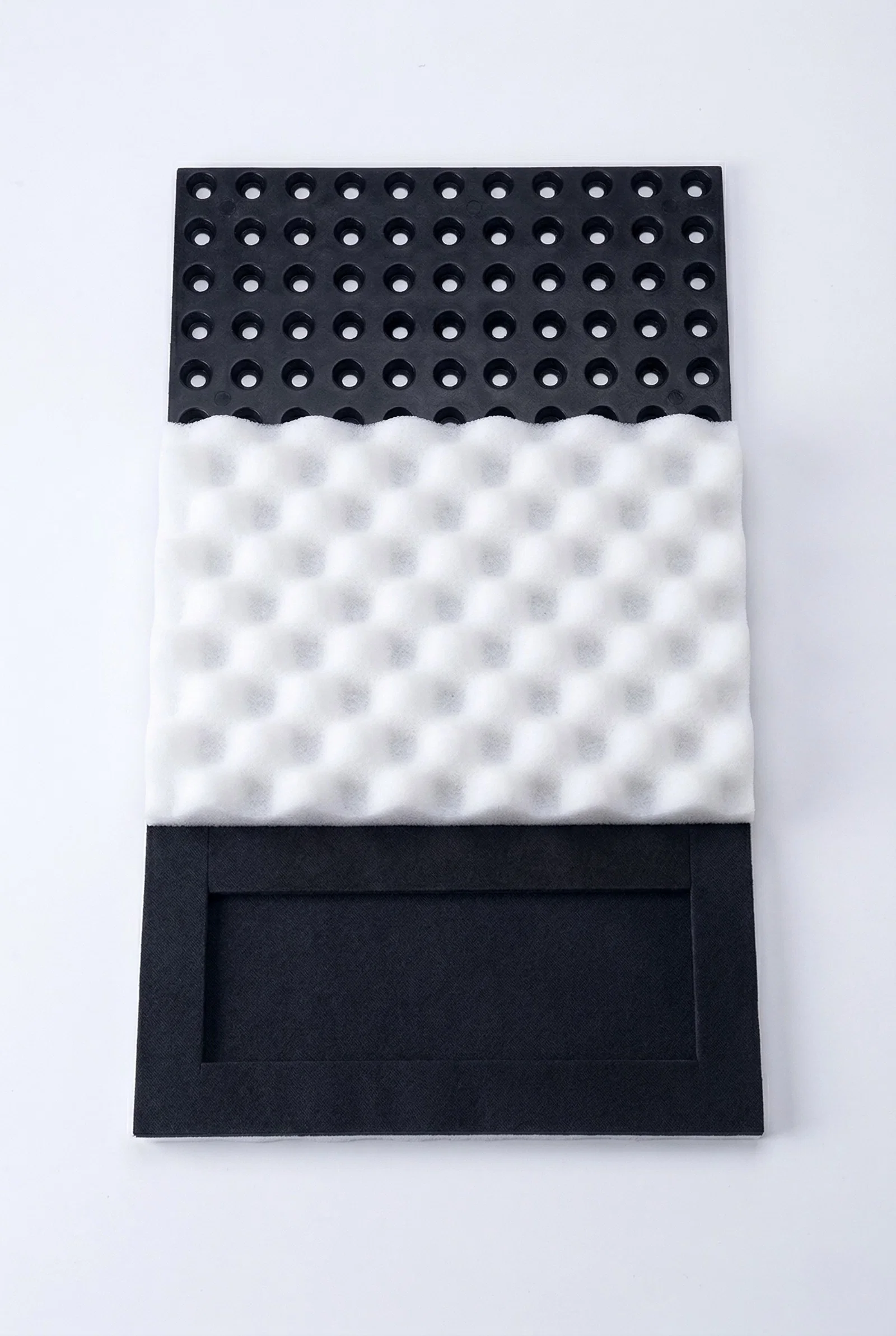

Geotextile drainage plates are composite products that combine a high‑density polyethylene (HDPE) bubble structure with a filtering geotextile cover, revolutionizing construction engineering and waterproofing systems. The primary purpose of this system is to protect structural elements from the mechanical and hydraulic pressure of groundwater and seepage.
Advantages of the Integrated Geotextile Filter
Unlike ordinary drainage plates, the integrated geotextile cover on these products serves as a critical barrier that extends the system's lifespan.
Preventing Clogging: The geotextile prevents fine soil particles from filling the spaces between the bubbles. Thus, the air void created by the bubbles remains open at all times, ensuring uninterrupted water drainage.
High Drainage Capacity: The optimized air void between the bubbles allows accumulated water to be quickly transferred to the main drainage line. This "running water safety" eliminates moisture formation in the building's foundation and curtain walls at its root.
Technical Specifications and Durability
Geotextile drainage plates possess the high pressure resistance required especially in tunnel and deep foundation applications. These plates, which do not lose their shape under soil load and moving loads:
Mechanical Protection: Protects waterproofing layers against mechanical damage that may occur during backfilling (stone penetration, etc.).
High Load Capacity: Maintains structural integrity in areas subjected to high-tonnage loads such as under highways and parking lots.
Chemical Resistance: Extremely resistant to underground acids, alkalis, and microorganisms.
Wide Application Areas and Sector Preferences
These plates, offering high-performance drainage solutions, are the primary choice not only in building foundations but also in many engineering-required areas:
Road and Bridge Construction: By ensuring water drainage beneath road structures, it prevents asphalt and ground deterioration.
Parking Lot and Garage Roofs: In areas with vehicle traffic, it prevents water accumulation on the waterproofing layer, minimizing leakage risk.
Tunnels and Metro Lines: Plays a critical role in the controlled removal of seepage water in underground structures.
Green Roof Applications: Provides drainage on garden roofs while creating a buffer zone that prevents plant roots from damaging the waterproofing.
Why Choose Geotextile Type? A standard drainage plate can lose its function over time by filling with mud and sediment when soil is directly poured onto it. Geotextile models, having a self‑cleaning filtration system, remain active throughout the structure's lifespan.
