Geocell Erosion Control System: Practical Solutions for Sloped Surfaces
Geocell Erosion Control System is an advanced technology engineering solution developed to counter the destructive effects of nature, especially on sloped lands and embankments. This system, made from high‑density polyethylene (HDPE), prevents the soil from being carried away by wind and water until the vegetation process is complete.
What is Geocell? Technology and Structure
Geocell is a three‑dimensional cellular fill material with a honeycomb geometry, obtained by processing high‑density polyethylene (HDPE) using special extrusion methods.
Integrated Structure: The seams of the strips are joined using ultrasonic welding technology.
Hydraulic Permeability: The perforated structure of the cell walls allows water flow between adjacent cells, balancing hydrostatic pressure and facilitating drainage.
Flexibility and Durability: It is highly resistant to chemical corrosion, UV rays, and underground biological activity.
Geocell Application Areas: Where Is It Used?
Geocell systems are reliably chosen in virtually every area where ground stabilization is needed:
- Road and Railway Embankments: Stabilizing steep slopes along road edges and preventing landslides.
- Pond and Canal Banks: Stopping bank erosion caused by changes in water level.
- Dry Canal Bed and Embankments: Minimizing the erosive effect of water during sudden rainfall.
- Soil Stabilization: Strengthening soils with low bearing capacity and balancing load distribution.
Geocell Application and Installation Stages
For proper erosion control, it is critical that the Geocell application be carried out in accordance with technical standards:
Soil Preparation: The embankment surface should be cleared of rough protrusions and compacted appropriately.

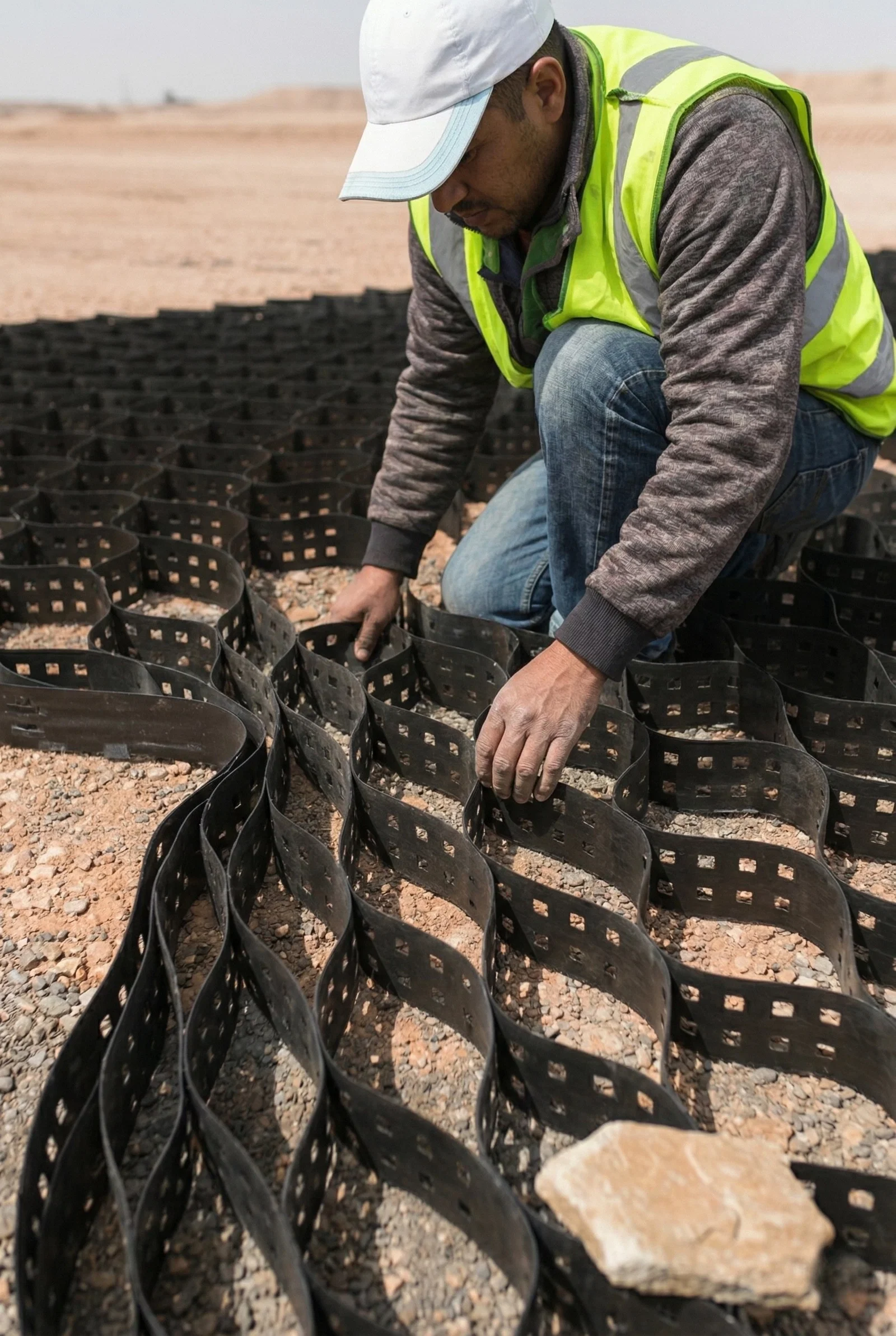

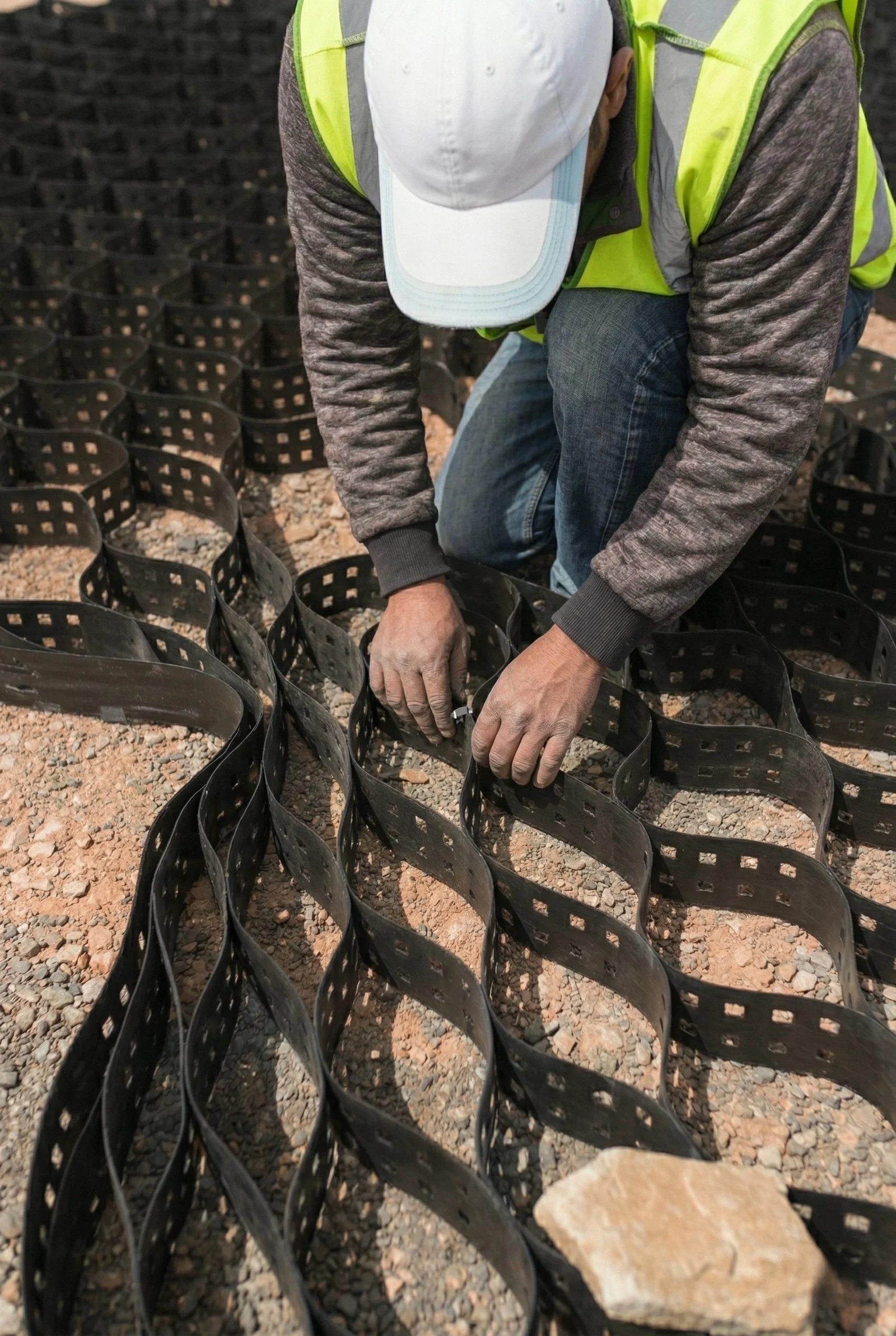

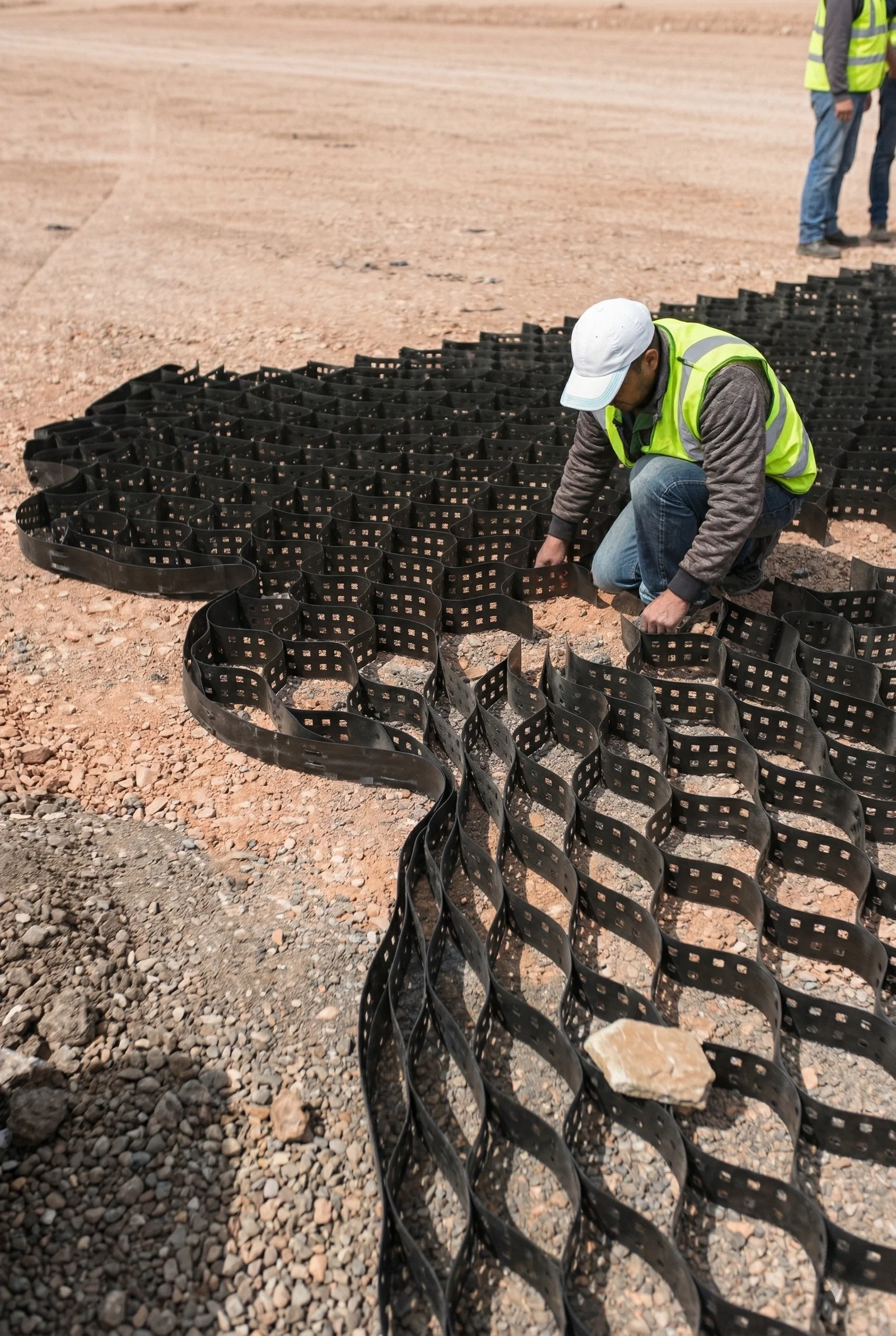

Spreading and Fixing: Geocell panels are unfolded onto the embankment and secured to the ground with special U‑shaped fixation devices (j‑pins or anchor bolts).
Anchor Trenches: The system is fully integrated into the ground thanks to anchor trenches created to prevent the material from sliding off the crest.
Filling Process: Cells are filled with soil, gravel, or concrete according to the project's purpose. If vegetation is to be planted, nutrient‑rich soil is preferred.
Why Should You Choose Geocell?
Environmentally Friendly: It helps protect and reclaim green spaces.
Cost‑Effective: Transportation and installation costs are much lower compared to conventional reinforced concrete solutions.
Fast Installation: Its lightweight structure allows it to be applied over large areas in a short time.
Long‑Lasting: Its polymer structure can remain intact underground for decades.
Expert Note: When selecting a Geocell, the cell height and spacing (cell size) should be determined based on the slope grade and type of fill material.
